GOLD Crevice Dredge Model 625 HD

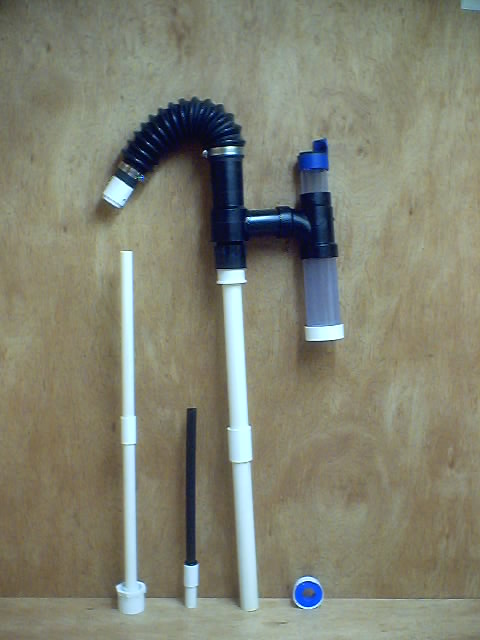

Model 625 HD Crevice Dredge                                    Hopper with Clamp Kit

  Click Here M625 and M2125 Gold Nugget Suction Power YouTube Video

  New! Click Here: Rent to Own Program

With a single elongation stroke of the pump, these Model 625 hand powered suction separator GOLD dredges are capeable of creating enormous suction at the nozzle end due to their sealed no leaks construction. Pulling the handle can  more than double the mechanical force of the incomming water when compared to siphoning thereby improving gold recovery from cracks and crevices. During the pump down phase that discharges the slurry of sand, gravel, and GOLD that was on the way up the hose/pipe, it might loose momentum and fall back down, but a rapid succession of pump strokes will keep it moving virtually walking the larger heavier values up, up and away, much like a motorized construction site pump that has solids transferring capabilities..

 The crevice dredge equipped with 36" of 1" ( 39 Cu. in., 22 fluid oz. ) class 200 PVC pipe 1.187" I.D. can reach deep with power to spare. With a capacity in excess of 32 oz. per stroke, at -10 in/hg the suctioned gravel gushes up the 36 inches of pipe, in no time, the crevice is cleaned, your ready to pan.

   The multi-function discharge valve is designed to be detatchable from the hopper "T" and plugs directly into the 45 degree elbow adapter (SHOWN BELOW) for filling sandbags or buckets with dredge material. Discharge valve passes 1 1/2" rocks.

        It gets even better, attach the 1/2" ID X 12" long, Funny Pipe, and the M625 HDCD doubles as the DRY VAC!   (Note: Hopper #1 assembly Not Included)

     The Model 625 Crevice Dredge, is the compact version of the Model 625 Hand Dredge, it too is ported and will easily pass 1 1/2", but is equipped instead with a quickly detachable close profile catchment system.

Model 625 HDCD includes:

     (1) Model 625 HD Pump Body

     (1) Model 625 HD crevice dredge kit
